Schwerlast - Rohrschelle 370
|
Rohr-DN
|
Durch-
messer
|
Material-
Abmessung
|
Lochdurch-
messer
|
Schrauben
|
Verp.-
Einheit
|
Art.-Nr.
|
|

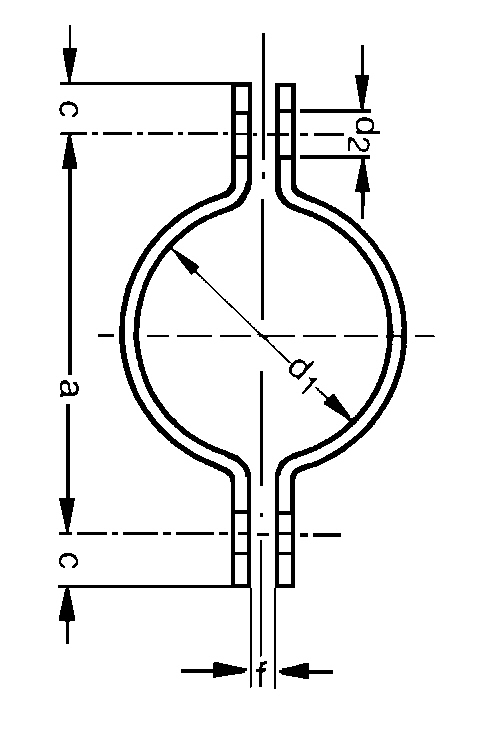

nach DIN 3567 Form A/ zweiteilig
|
[Zoll]
|
[mm]
|
[mm]
|
[mm]
|
[M…]
|
[St.]
|
|
|
Material St 37-2
- Für Rohrmontagen im industriellen Bereich.
- 2-teilig.
- Mit passenden Sechskantschrauben, U-Scheiben und Muttern; galvanisch verzinkt
- Material St 37 – 2 roh DIN 17100
- Sehr gut schweißbar.
|
22
|
21,3
|
30 x 5
|
11,5
|
M10x30
|
1
|
SLS022
|
|
27
|
26,9
|
30 x 5
|
11.5
|
M10x30
|
1
|
SLS027
|
|
34
|
33,7
|
30 x 5
|
11,5
|
M10x30
|
1
|
SLS034
|
|
38
|
38,0
|
30 x 5
|
11,5
|
M10x30
|
1
|
SLS038
|
|
43
|
42,4
|
30 x 5
|
11,5
|
M10x30
|
1
|
SLS043
|
|
45
|
44,5
|
30 x 5
|
11,5
|
M10x30
|
1
|
SLS045
|
|
49
|
48,3
|
30 x 5
|
11,5
|
M10x30
|
1
|
SLS049
|
|
57
|
57,0
|
40 x 6
|
14,0
|
M12x35
|
1
|
SLS057
|
|
61
|
60,3
|
40 x 6
|
14,0
|
M12x35
|
1
|
SLS061
|
|
77
|
76,1
|
40 x 6
|
14,0
|
M12x35
|
1
|
SLS077
|
|
89
|
88,9
|
40 x 6
|
14,0
|
M12x35
|
1
|
SLS089
|
|
108
|
108,0
|
50 x 8
|
18,0
|
M16x45
|
1
|
SLS108
|
|
115
|
114,3
|
50 x 8
|
18,0
|
M16x45
|
1
|
SLS115
|
|
133
|
133,0
|
50 x 8
|
18,0
|
M16x45
|
1
|
SLS133
|
|
140
|
139,7
|
50 x 8
|
18,0
|
M16x45
|
1
|
SLS140
|
|
159
|
159,0
|
50 x 8
|
18,0
|
M16x45
|
1
|
SLS159
|
|
169
|
169,0
|
50 x 8
|
18,0
|
M16x45
|
1
|
SLS169
|
|
194
|
193,7
|
50 x 8
|
18,0
|
M16x45
|
1
|
SLS194
|
|
220
|
219,1
|
50 x 8
|
18,0
|
M16x45
|
1
|
SLS220
|
|
273
|
273,0
|
60 x 8
|
23,0
|
M20x50
|
1
|
SLS273
|
|
324
|
324,0
|
60 x 8
|
23,0
|
M20x50
|
1
|
SLS324
|
|
368
|
368,0
|
60 x 8
|
23,0
|
M20x50
|
1
|
SLS368
|
|
419
|
419,0
|
70 x 10
|
27,0
|
M24x60
|
1
|
SLS419
|
|
508
|
508,0
|
70 x 10
|
27,0
|
M24x60
|
1
|
SLS508
|
|
521
|
521,0
|
70 x 10
|
27,0
|
M24x60
|
1
|
SLS521
|
|
|
|
|
|
|
|
|
|
|
|
